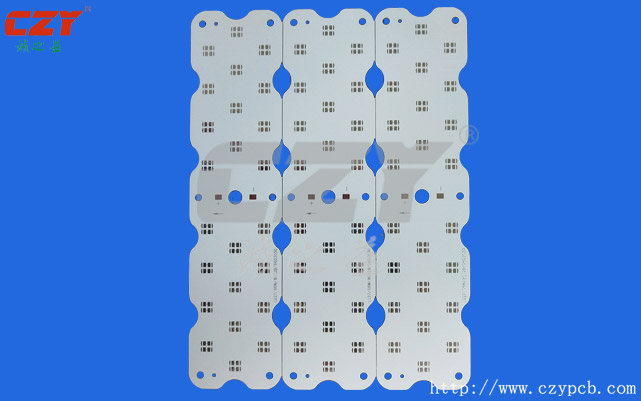

aluminum substrate 5052

Aluminum PCB is one type of metal core printed circuit board (MCPCB), widely be used in LED lighting products, automotive lighting, new energy electrocars/monorail illumination, stage lighting, medical equipments, high-power light source equipment, charging pile, etc.

With Advantages of low cost, environmentally friendly, good heat dispation, higer durability and light weight, aluminum PCB has become the most popular one among all Metal Core PCBs. The base material consists of an aluminum core and standard FR4. It features a thermal clad layer that dissipates heat in a highly efficient manner while cooling components and increasing the overall performance of the products. Currently, Aluminum Backed PCB is regarded as the solution to high power and tight tolerance applications.

Availability:

Quantity:


Inquire Add to Basket

Model:
AL12
Brand:
CZY

Product Description

Technical Projects	Capabilities	Technical Projects	Capabilities
Material	aluminum substrate / copper substrate / copper aluminum composite plate /FR-4	Panel Bow & Twist	0.5%（size: 350*350MM）
Thermal Conductivity	1.0W/1.5W/2.0W/4.0W/8.0W/122W	Panel Bending Angle	30° 45° 90° etc.
Plate Thickness	0.2-5.0MM	Withstand Voltage	AC1500-4000V
Surface Treatment	LF HASL / Immersion Gold /OSP	Copper Foil Thickness	25um 35um 70um 105um
Maximum Size	1500*500MM	Molding	CNC / Die Punching / V-CUT / Laser Cutting
Minimum Size	5MM*5MM	External Tolerance	CNC: ±0.1-0.15MM Die Punching: ±0.125MM Laser Cutting: ±0.05MM
Min Line Width	0.1MM(4mil)	Solder Mask	white or customize
Min Line Space	0.1MM(4mil)	Processing	exposure / thermoelectric separation
Min Hole	∮1.6mm	Monthly Capacity	20,000 m2
E-T Test	100% computer short circuit test	Lead Time	aluminum sample 2~3D, batch 5~8D; copper sample 6D, batch 8~12D
